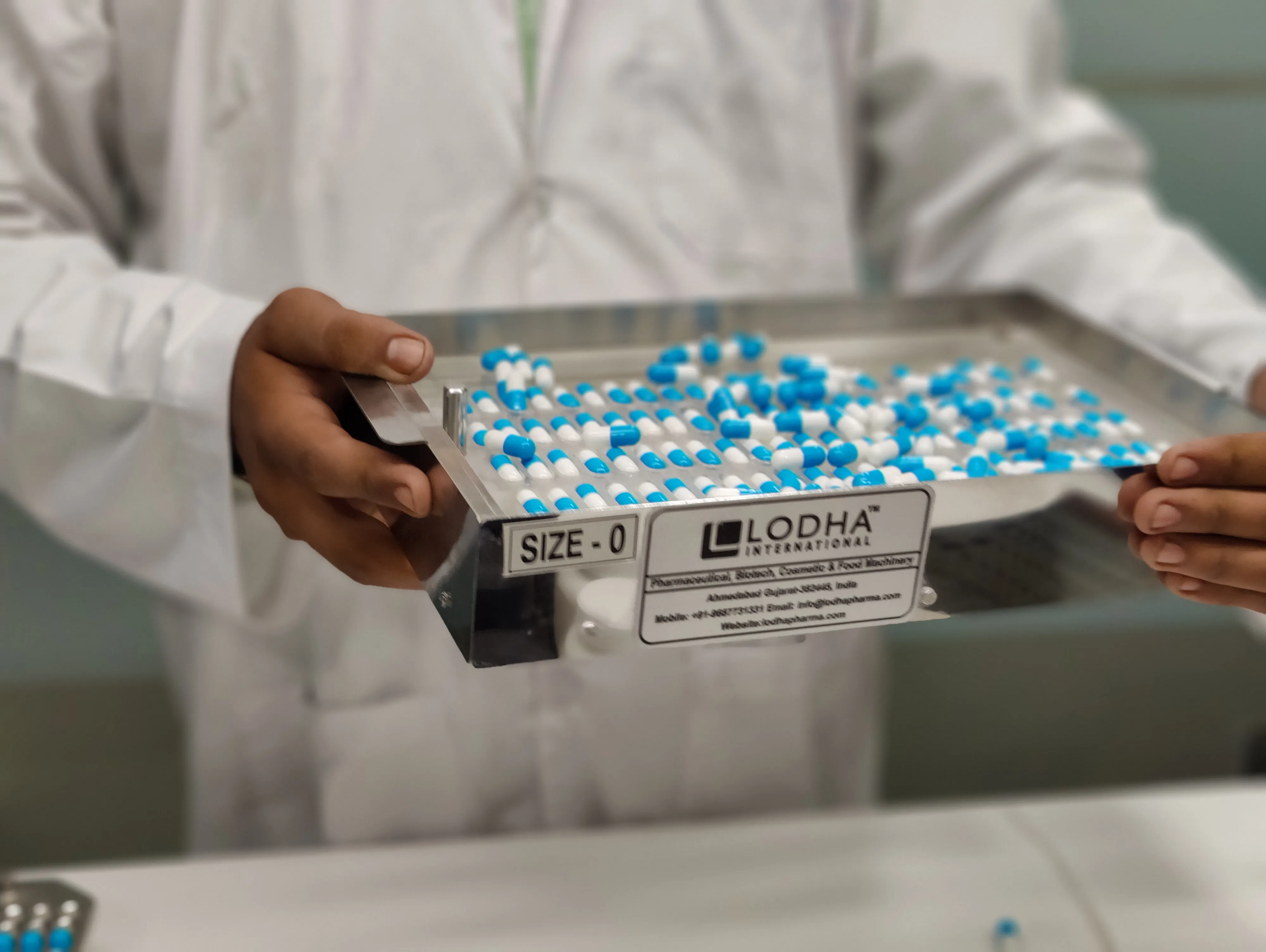

Manual Capsule Loader

Manual Capsule Loader

loads capsules automatically onto loading tray of Capsule Filling Machine. Machine is compact occupies minimum space. it gives higher production with much better standard of accuracy. Loader automatically loads empty capsule in the loading plate for manually operated capsule filling machine, hence it takes normally 5 minutes to load empty capsule in 300 holes loading plate manually, this machine cuts down that time to only 30 - 60 seconds.

Synonyms:

Manual Capsule Inserter, Manual Capsule Orienter, Manual Capsule Orientation Equipment

Application:

Loading trays of Manual 300 Holes Capsule Filling Machine

Suitability:

Hard Gelatine, HPMC & Veg Capsules in 00, 0, 1, 2, 3, 4 & 5 sizes

Versions:

Manual Capsule Orienter, Automatic Capsule Orienter

Salient Features:

  • Compact model complies as per GMP requirements.
  • Manual mode simple to use and no electricity requires.
  • Low investment higher production output.
  • Simple to operate, can be handled by semi-skilled person.
  • Very compact and low weight which makes easy movement.

Technical Specification:

Model Number LI-MCL
Production Output Up to 10000 Capsules/hour (Also depends on operators’ efficiency)
Capsule Combinations Size 00, 0, 1, 2, 3 and 4 (Through Separate Orienter)
Sequence of holes 25 x 4 = 100
Material of Construction Acrylic with Stainless Steel Cover
Net Weight 6 Kgs. Approx.
Gross Weight 8 Kgs. Approx.
